Shot Blasting: Industry Shaping Technology
Shot blasting is an innovative method used in many industry sectors, from automotive to steel structures. This technology, despite its effectiveness and versatility, often remains incomprehensible to many. This article aims to understand this technology, discuss its history, process, applications, and also look at the future of shot blasting.
In the Footsteps of History: The Origins of Shot Blasting
The origins of shot blasting can be traced back to the beginning of the 20th century, when this technology began to gain popularity in the steel industry. Since then, shot blasting has come a long way, with groundbreaking discoveries and improvements that have made it an indispensable tool for many industry sectors.
In The Depths Of The Process: What Is Shot Blasting
Shot blasting, also known as sandblasting, is an industrial technique that involves "shooting" tiny particles of abrasive, known as "shot", into the surface of a material under high pressure. This process is commonly used to remove undesirable layers from surfaces such as rust, paint, grease, and welding residues, and to prepare surfaces before applying paint or anti-corrosion coatings.
Furthermore, shot blasting can also be used to increase surface adhesion by creating a fine, uneven texture that allows paints or coatings to adhere better. This makes the process extremely valuable in the construction, automotive, marine, aerospace and even sports equipment industries.
However, not all shot blasting processes are the same. There are many different techniques depending on the type of abrasive used. Here are some of them:
Steel shot blasting
As the name suggests, this technique uses fine cast steel balls as the abrasive. This is the most popular method, due to its effectiveness in removing hard layers from the surface.
Granite shot blasting
In this method, granite particles are used. This method is less aggressive, which makes it ideal for more delicate surfaces that could be damaged by steel abrasive.
Corundum shot blasting
Alumina, a hard mineral composed mainly of alumina, is often used in shot blasting because of its abrasive properties. This is an ideal method for surfaces that require intensive cleaning.
Different shot blasting techniques are used depending on the type of surface to be cleaned or prepared, and choosing the right method is crucial to achieving optimal results.
The Machine in Action: How Shot Blasting Works

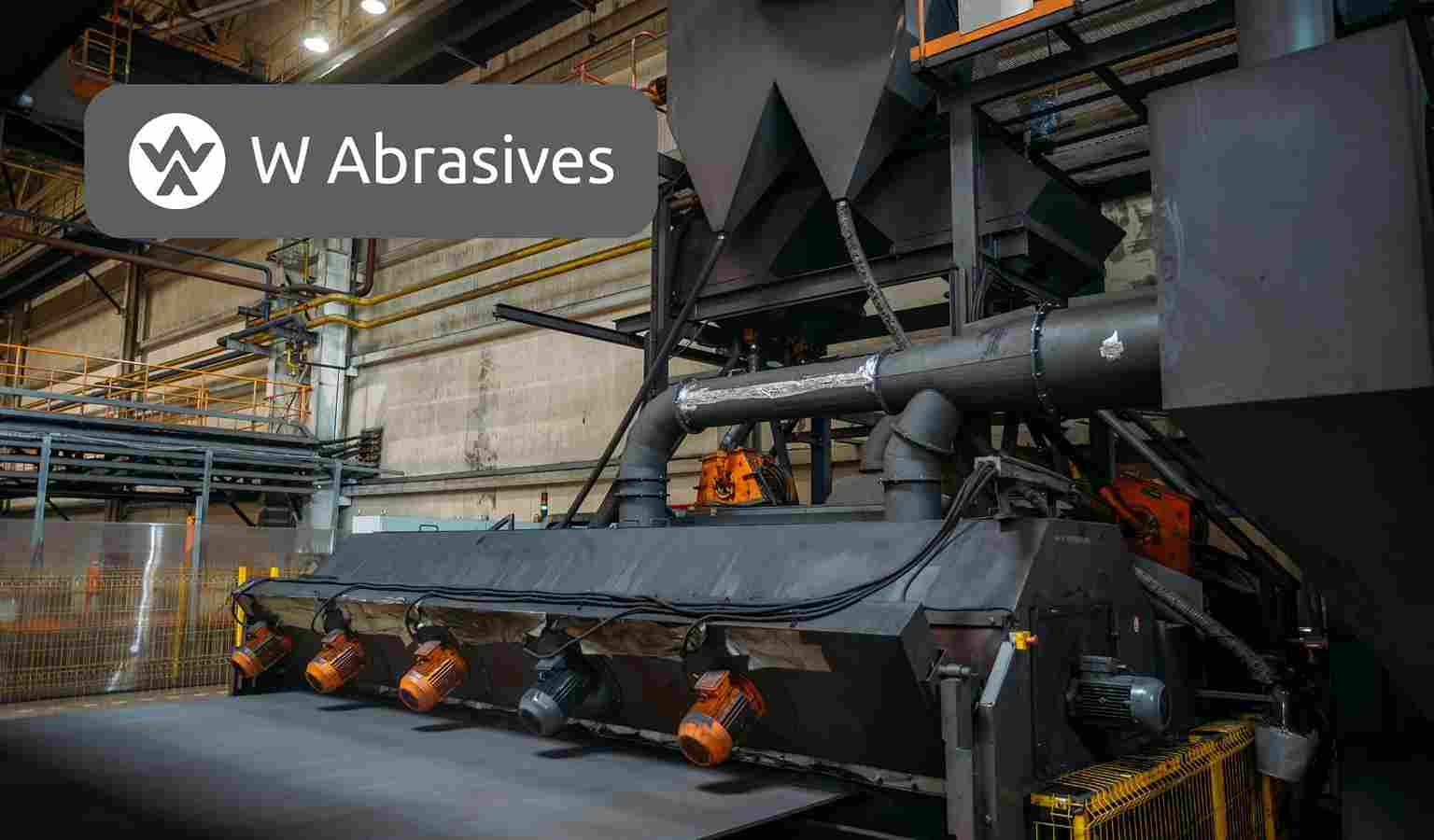

The basic element of the shot blasting process is the shot blasting machine. Such a machine usually includes an abrasive hopper, a shot dosing system, a shot accelerating system and a chamber in which the shot itself takes place. All these elements work together to ensure effective and precise surface cleaning.
The shot blasting process begins with placing the abrasive in the machine's hopper. Then, using the metering system, the shot is fed into the accelerator system, which ejects it under high pressure towards the surface of the material. In the case of larger objects, such as ship parts or steel structures, this process takes place in a special blasting chamber.
Shot blasting machines can work with different types of abrasives, depending on the specifics of the application. The most commonly used are cast steel balls, but they can also be granite, sand, corundum or other abrasive materials. Choosing the right abrasive depends on many factors, including the type of surface to be cleaned, the degree of cleaning desired, and the cost and availability of the abrasive.
Practice Makes Perfect: Shot Blasting Applications
Shot blasting is a technology with a wide range of applications, present in many industry sectors. In the automotive industry, shot blasting is used to clean rust, paint and other contaminants from the surface of car parts, but also to prepare surfaces for painting or welding.
In the shipbuilding industry, shot blasting helps to keep large steel parts of ships, such as hulls and decks, clean and functional. Thanks to this method, it is possible to effectively remove rust, algae, sea salt and other impurities that may settle on the surfaces of ships.
The construction industry also uses shot blasting, primarily to prepare the surface of steel structures for painting or anti-corrosion coating. In addition, the process is often used to clean concrete, for example before applying protective coatings or making repairs.
However, there are many more applications of shot blasting, and their spectrum is constantly expanding. This versatile technology is used where effective, fast and precise surface cleaning is required.
Balance of Benefits: Advantages and Disadvantages of the Shot Blasting Method
The shot blasting method is a process that is extremely effective and widely used in many industries. However, like any technology, it has its advantages and disadvantages. Below we present some of the most important aspects of this method.
Advantages of shot blasting
Speed and efficiency: Shot blasting is one of the most effective methods of cleaning and preparing surfaces for painting or protective coating. The shot, striking at high speed, effectively removes rust, paint and other contaminants. The process is also much faster than traditional cleaning methods.
Possibility of automation: In industry, time is money. Thanks to the possibility of automating the shot blasting process, it is possible to significantly increase efficiency and save time. Automation also ensures consistent cleaning quality.
No chemical waste: Shot blasting does not require the use of any chemicals, which makes it environmentally friendly. What's more, the shot used can be recovered and reused, further reducing the environmental impact of the process.
Increased surface adhesion: The shot blasting process creates a fine grained, rough surface that is ideal for adhering paints, coatings and other materials. This increased adhesion makes the coatings more durable and adheres better to the surface.
No surface heating: Unlike some other cleaning methods, such as sandblasting, shot blasting does not cause the surface to heat up significantly. This means there is no risk of deformation or damage to the material, making it ideal for a wide range of materials including metals, concrete and stone.
Disadvantages of shot blasting
The need to protect personnel: The speed at which the shot strikes the surface generates a large amount of dust and can pose a health risk to workers. Therefore, it is necessary to provide appropriate personal protective equipment, such as dust masks, safety glasses and helmets.
Operating costs: Although shot blasting is very effective, it is also an expensive process. These costs include both the purchase of machines, their operation and maintenance. Moreover, these costs may increase if we choose an automated process.
Noise: The shot blasting process can be quite noisy, which can be a problem in urban environments or workplaces where sound may be undesirable. Noise reduction may require additional investment in soundproofing, which is another cost factor.
Shot blasting is an effective and efficient method of cleaning and surface preparation, but requires adequate worker protection and can generate higher operating costs. When choosing this method, it is therefore worth carefully analyzing all the pros and cons to make the most optimal decision.
Into the Future: Innovations and Trends in Shot Blasting
In a world where innovation is becoming not only desirable, but also necessary, shot blasting technology is no exception. In recent years, we have seen significant development in this field, thanks to companies investing in research and development. Here are some of the key trends and innovations shaping the future of shot blasting:
- Automation: Automation is one of the most important trends in the shot blasting industry. As companies strive to increase efficiency and reduce costs, more and more shot blasting processes are being automated. This not only speeds up the process, but also reduces the risk of human error and improves employee safety.
- Green solutions: As companies become more aware of their environmental impact, they are looking for ways to minimize the impact of their operations on the planet. Therefore, there is a growing demand for ecological solutions in shot blasting, such as the use of biodegradable materials or the recycling of abrasive streams.
- Digital Solutions: The shot blasting industry is also seeing the benefits of digitization. Everything from advanced monitoring and control systems to data analytics and artificial intelligence is used to optimize processes and achieve better results.
- Dust-free technologies: More and more companies are investing in dust-free technologies that aim to reduce the amount of dust produced during the shot blasting process. These innovations not only improve the working conditions for the operators, but also increase the efficiency of the process by better focusing the abrasive stream.
So, the future of shot blasting technology looks promising, and the booming growth of this sector suggests that we will see even more innovations in the coming years that will transform the way we use this key technology.
Effective, Safe and Efficient: Choose W Abrasives for your Shot Blasting Needs
If you run a company that uses shot blasting technology, then you are probably well aware of the importance of using high-quality abrasives. Choosing the right abrasives is the key to achieving the effectiveness, safety and performance you need for great results.
As a leader in the abrasives industry, W Abrasives is proud to offer its customers the exceptionally efficient and durable cast steel abrasives that are essential for successful shot blasting. Our products are designed to provide optimal performance while ensuring operator safety. In addition, our abrasives are characterized by a long service life, which translates into significant savings in the long term.
When you choose W Abrasives, you not only get access to our wide range of high quality abrasives, but also to our experienced team of specialists. Our experts are available to help you choose the right abrasives for your specific needs, as well as to provide you with technical support and advice.
Choosing W Abrasives is more than just choosing a product - it's a decision to partner with a company that is committed to providing the best solutions for its customers. Contact us today to learn more about how our products and services can help your business achieve better results in the shot blasting process.
